Triple Connectivity
Wi-Fi 802.11 b/g/n, Bluetooth 5 with mesh support, and LoRa SX1262 for long-range communication.
Product Overview

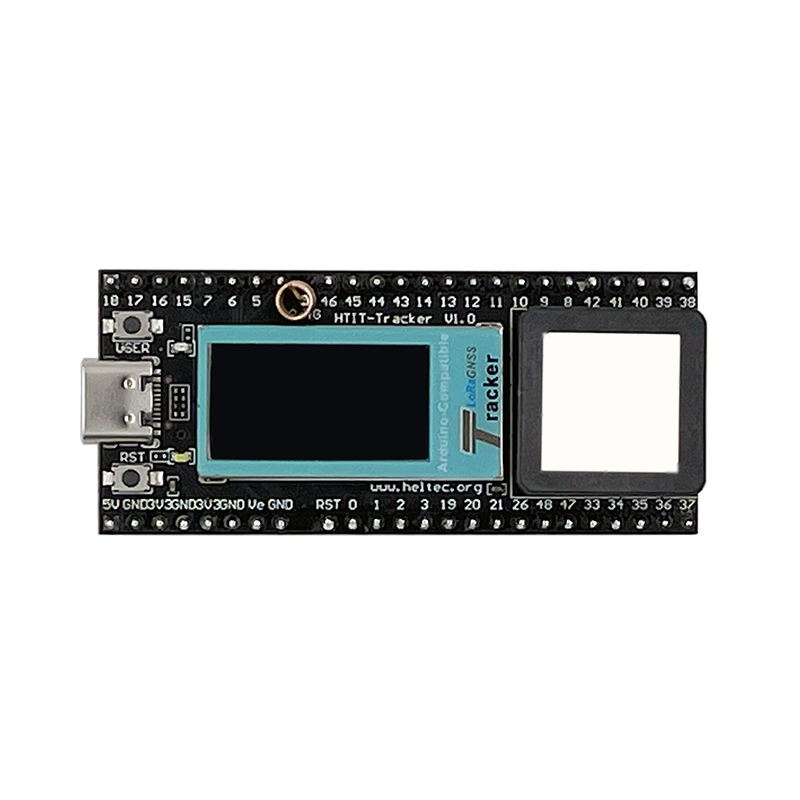

The Wireless Tracker is a development kit based on the ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide a fast GNSS solution for IoT. Combined with the sample programs and development tools provided, you can track any object and upload data wirelessly via Wi-Fi, Bluetooth, or LoRa.
Key Features
Section titled “Key Features”Dual-Frequency GNSS
L1+L5 positioning with GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS support.
Onboard Display
0.96” RGB TFT-LCD (80×160) for status, debugging, and user interface.
Battery Management
Integrated lithium battery charging, discharge protection, and automatic USB/battery switching.
Hardware Highlights
Section titled “Hardware Highlights”- ESP32-S3FN8 dual-core Xtensa LX7 processor with 8MB flash
- SX1262 LoRa transceiver with up to +21 dBm TX power
- UC6580 96-channel GNSS receiver
- Type-C USB with ESD protection and voltage regulation
- SH1.25-2 battery connector with charging circuit
- IPEX connectors for LoRa and GNSS external antennas
- Metal spring antenna for 2.4 GHz Wi-Fi/Bluetooth
Product Models
Section titled “Product Models”| Model | LoRa Frequency | Regional Networks |
|---|---|---|
| Wireless Tracker-LF | 470-510 MHz | CN470 (China) |
| Wireless Tracker-HF | 863-928 MHz | EU868, US915, AU915, AS923, KR920 |
Typical Applications
Section titled “Typical Applications”- Asset tracking: Vehicles, containers, equipment
- Personal safety: Elderly, children, pets
- Agriculture: Livestock, irrigation systems
- Fleet management: Delivery, logistics
- Sports & recreation: Hiking, cycling, boating
- Mesh networking: Meshtastic off-grid communication
What’s Next?
Section titled “What’s Next?”- Hardware Versions - Differences between V1.0 and V1.1
- Development Platforms - Choose your development environment
- Pinout Reference - Pin assignments and GPIO functions
